Description

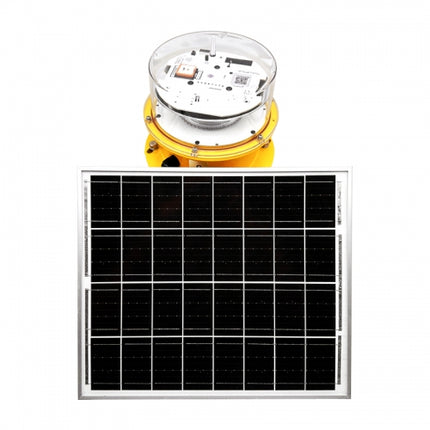

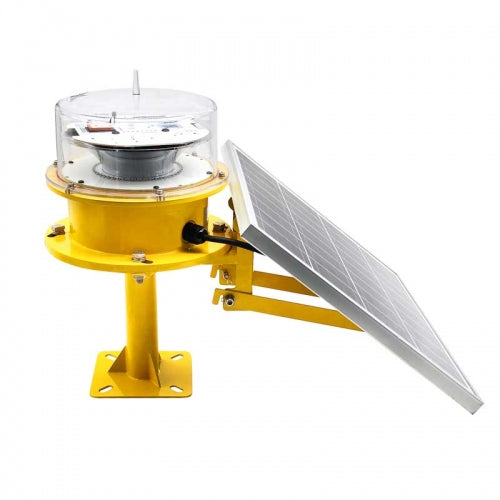

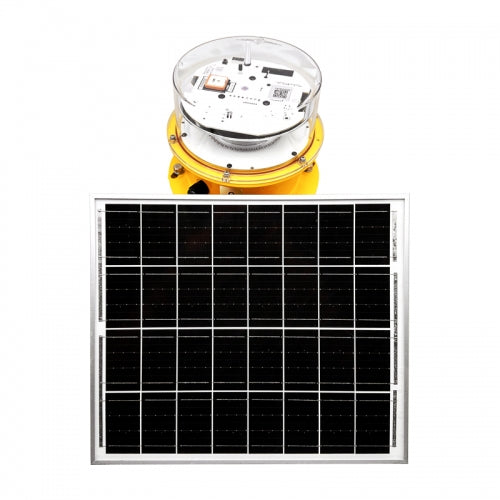

Power your aviation safety infrastructure without grid dependency. The Rubik RBMB01(L)-SOLAR Solar Powered Medium Intensity Type B Aviation Obstruction Light delivers reliable 2000cd red flashing illumination for towers, chimneys, bridges, and high-rise structures, fully compliant with ICAO Annex 14, CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J. Engineered for demanding environments across world and specially for the UAE, Dubai, and the wider Middle East, this self-contained solar unit eliminates cabling costs and operates in complete off-grid locations.
Key Features
- Housing adopts high intensity casting aviation aluminum, fully sealed and corrosion-resistant structure
- Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
- Surge protection device rated for extremely harsh working environments
- High conversion efficiency monocrystalline silicon chip with service life of more than 20 years
- Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
- Built-in independent battery charge and discharge management module for easy maintenance
- Optional GPS Beidou wireless synchronization, LORA-10KM wireless sync, remote control and telemetering
- Integrated high-power 25W solar panel design with high charging efficiency
- IP68 protection rating, fully waterproof and dustproof for permanent outdoor installation
- Lithium iron phosphate battery with 12.8V 12AH capacity for reliable overnight operation
Performed Standards
| Authority |
Standard |
Scope |
| CAAC |
MH/T 6012-2015 and AC-137-CA-2017 |
Aviation obstruction light |
| ICAO |
ICAO Annex 14 Volume I The 8th Edition |
Airport design and operation |
| FAA |
Advisory Circular 150/5345-43J |
Specification for Obstruction Lighting Equipment |
Specifications
| Specification |
Details |
| Model Number |
RBMB01(L)-SOLAR |
| Item Number |
TX-MB-01(L) |
| Type |
Medium Intensity Type B |
| Power Supply |
Solar power supply (DC) |
| Average Power Consumption |
2.5W or less |
| Solar Panel Power |
25W monocrystalline silicon |
| Battery Type |
Lithium iron phosphate battery |
| Battery Capacity |
12.8V 12AH |
| Working Mode |
Flashing |
| Flash Frequency |
20 times per minute |
| Effective Intensity (Night) |
2000 cd (default 1600 cd or more) |
| Light Source |
LED |
| Light Source Lifespan |
200,000 hours or more |
| Emitted Color |
Red |
| Shell Material |
Aviation dedicated aluminum alloy |
| Luminous Mirror Material |
Optical PC |
| Vertical Divergence |
3 degrees |
| Horizontal Output |
360 degrees |

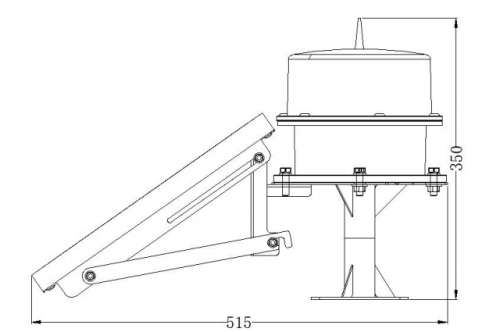

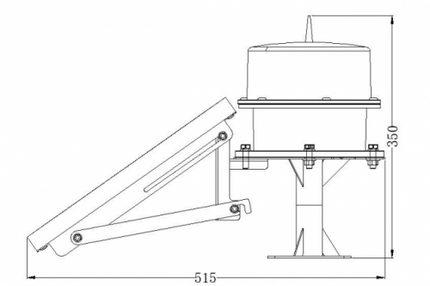

| Overall Size (with panel) |
466 x 370 x 350 mm (L x W x H) |

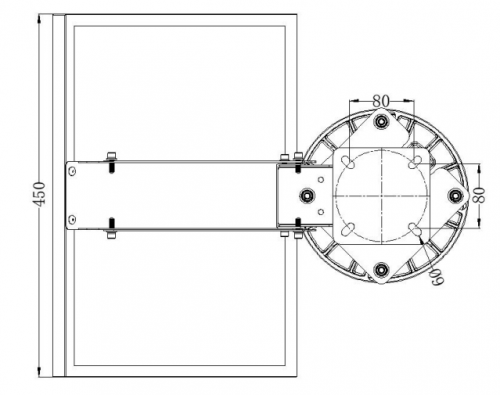

| Installation Size |
80 x 80 mm, M8 |
| Photocell Stage |
50 / 100 Lux |
| Ambient Temperature |
-40 degrees C to +55 degrees C |
| Relative Humidity |
0% to 95% |
| Protection Grade |
IP68 |
| Wind Load |
240 km/h |
| Weight |
Approximately 6 kg |
| Seismic Resistance |
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis |
| Mean Time Between Failure |
200,000 hours or more, MIL-HDBK-217F (25 degrees C) |
| EMC Standards |
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 |
| Operating Altitude |
5500 m or more above sea level |
| Rain Resistance |
Can be exposed to rain in any wind direction |
| Salt Spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
Applications
Ideal for off-grid and remote installations across the World, as well as in UAE and Middle East including airports, communication towers, chimneys, bridges, high mast lamps, high-rise buildings, blocks, and telecom towers requiring durable, ICAO FAA CAAC GCAA - compliant medium intensity aviation warning lights without grid power access.
Usage Notes
- If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage.
- Installation personnel must check that the power switch is on and fixing screws are tightened after installation.
- Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
- For solar product storage, strictly comply with the provisions provided in the product documentation.
