Description

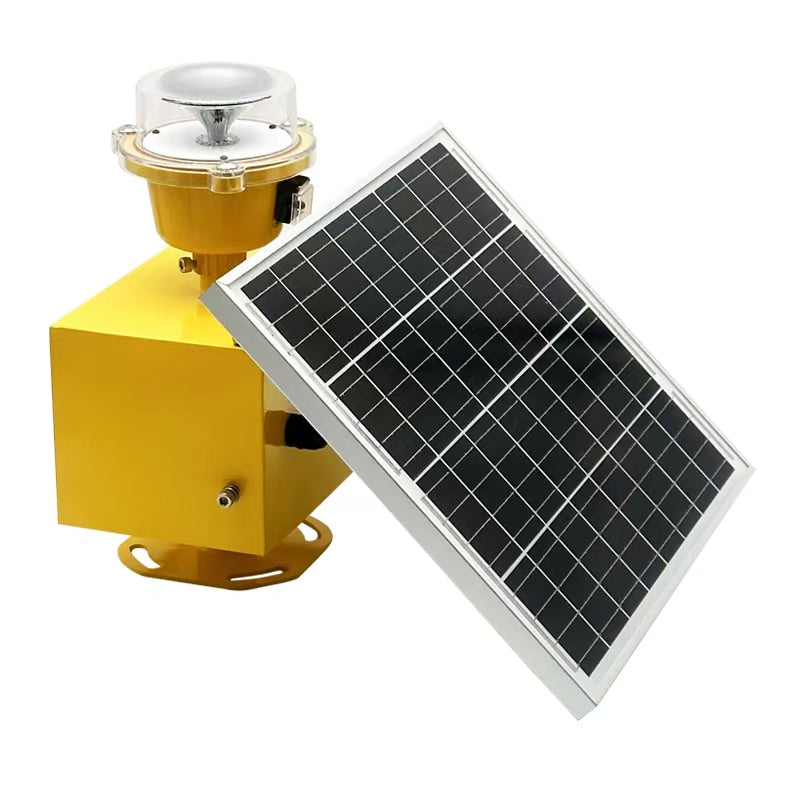

Rubik Solar Low Intensity Type B Aviation Obstruction Light RBRLB01(L)-SOLAR is a fully self-contained solar unit delivering consistent 32.5cd steady red illumination for towers, chimneys, bridges, telecom masts, and high-rise buildings. Compliant with ICAO Annex 14 (8th Edition), CAAC MH/T 6012-2015, AC-137-CA-2017, and FAA Advisory Circular 150/5345-43J, this off-grid ready light eliminates cabling costs and operates reliably across the World, UAE, Dubai, and the wider Middle East.
Key Features
- Housing adopts high intensity casting stainless steel, fully sealed structure for maximum durability and corrosion resistance
- High efficiency SMT LED chip with reflecting optical structure for high brightness and long lifespan
- Advanced independent R&D optical lighting system, spotlight angle meets CAAC and ICAO requirements
- Surge protection device rated 3KA for extremely harsh working environments
- High conversion efficiency monocrystalline silicon chip with service life of more than 20 years
- Impact resistant, anti-lightning, resistant to sunlight, anti-snow, withstands typhoons, hail and severe weather up to 240 km/h
- Built-in independent battery charge and discharge management module for easy maintenance
- Lithium iron phosphate battery with lifespan more than 2 times that of ordinary lead-acid battery
- Integrated high-power 25W solar panel design with high charging efficiency
- Remote control and telemetry can be customized
- IP65 protection rating, dustproof and waterproof for permanent outdoor installation
- Operates at altitudes of 5500m or more above sea level
Performed Standards
| Authority |
Standard |
Scope |
| CAAC |
MH/T 6012-2015 and AC-137-CA-2017 |
Aviation obstruction light |
| ICAO |
ICAO Annex 14 Volume I The 8th Edition |
Airport design and operation |
| FAA |
Advisory Circular 150/5345-43J |
Specification for Obstruction Lighting Equipment |
Specifications
| Specification |
Details |
| Model Number |
RBRLB01(L)-SOLAR |
| Item Number |
|
| Type |
Low Intensity Type B Single Light |
| Power Supply |
Solar power supply (DC) |
| Power Frequency |
DC supply |
| Average Power Consumption |
2.6W or less |
| Solar Panel Power |
25W monocrystalline silicon |
| Battery Type |
Lithium iron phosphate battery (LiFePO4) |
| Battery Capacity |
12.8V 12AH |
| Working Mode |
Steady light |
| Effective Intensity (Night) |
32.5 cd or more |
| Light Source |
LED |
| Light Source Lifespan |
200,000 hours or more |
| Emitted Color |
Red |
| Shell Material |
Stainless steel |
| Luminous Mirror Material |
Optical PC |
| Vertical Divergence |
More than 10 degrees |
| Horizontal Output |
360 degrees |
| Overall Size |
450 x 433 x 302 mm (L x W x H) |
| Installation Size |
80 x 80 mm, M8 |
| Photocell Stage |
50 / 100 Lux |
| Ambient Temperature |
-40 degrees C to +55 degrees C |
| Relative Humidity |
0% to 95% |
| Protection Grade |
IP65 |
| Wind Load |
240 km/h |
| Weight |
6.5 kg |
| Surge Protection Rating |
3KA |
| Seismic Resistance |
10 to 500Hz, 2G, 10 min/cycle, XYZ 60 minutes per axis |
| Mean Time Between Failure |
200,000 hours or more, MIL-HDBK-217F (25 degrees C) |
| EMC Standards |
Emitted EN55022 (CISPR22) Class A, Harmonic EN61000-3-2 and -3 |
| Operating Altitude |
5500 m or more above sea level |
| Rain Resistance |
Can be exposed to rain in any wind direction |
| Salt Spray |
Can be exposed to salt spray |
| Radiation |
Can be exposed to solar radiation |
| Insulation Characteristic |
Not applicable |
Applications
Ideal for off-grid and remote aviation safety marking across the UAE and Middle East on airports, communication towers, chimneys, bridges, high mast lamps, super high-rise buildings, blocks, and telecom towers requiring compact, ICAO and FAA-compliant solar low intensity Type B aviation warning lights without grid power access.
Usage Notes
- If storage time exceeds 3 months, place the product outdoors in sunshine for 3 days every 3 months to prevent battery damage.
- Installation personnel must check that the power switch is on and fixing screws are tightened after installation.
- Non-professional personnel should not repair the equipment to avoid enlarging the fault and personal injury.
- For solar product storage, strictly comply with the provisions provided in the product documentation.
