Description

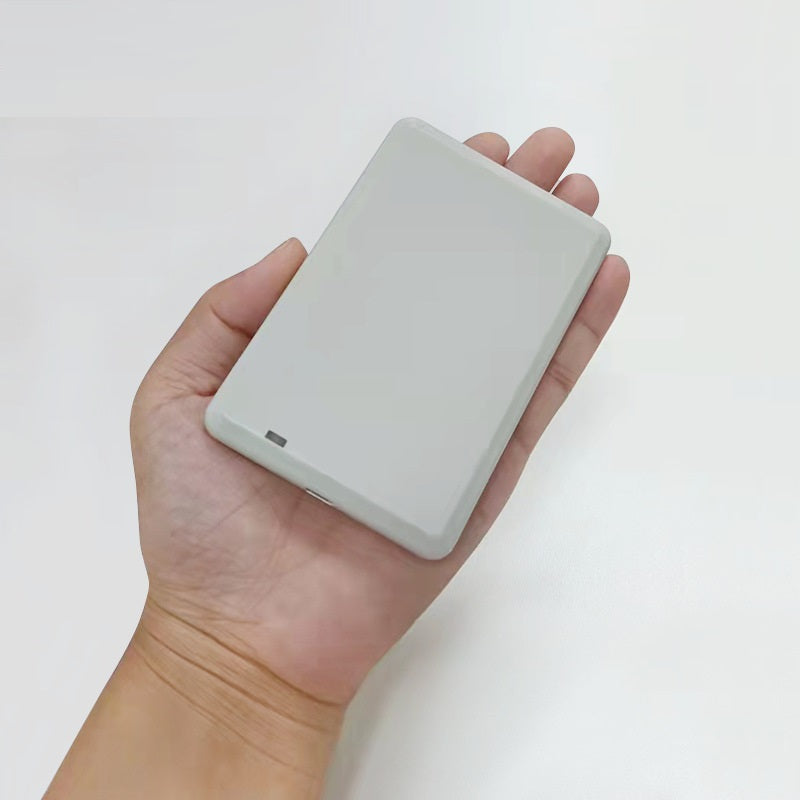

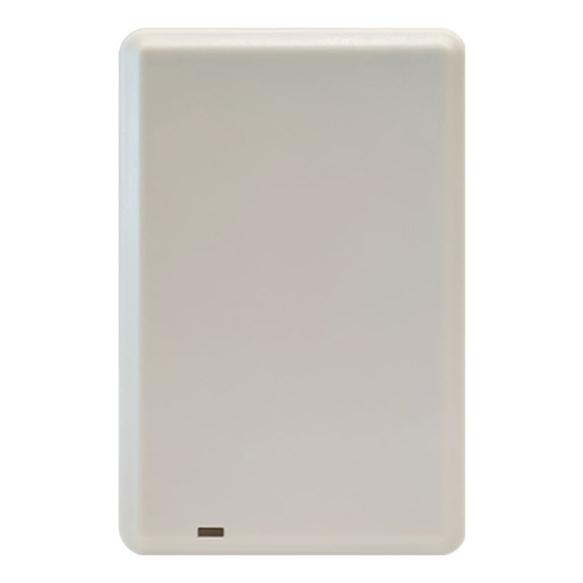

UHF High-Frequency Card Issuer 902-928MHz, 865-868MHz, this high-performance UHF frequency card / tag issuer that follows the ISO18000-6C (EPC C1G2) protocol for UHF cards and tags. It combines with efficient electronic tag collision handling algorithm, ensuring high read rates while enabling fast read and write processing of electronic tags. It can be widely used in various RFID (Radio Frequency Identification) systems such as logistics, personal identification, smart parking, access control systems, anti-counterfeiting systems, and production process control.
Note: This is not a parking card copier.
- Product Features:
- Full support for UHF EPC Gen2 (ISO18000-6C) protocol
- Advanced tag collision processing algorithm with high read rate
- Operating frequencies: FCC 902-928MHz, CE 865-868MHz
- Works via frequency hopping (FHSS) or fixed frequency transmission
- Output power: Maximum 27dBm (adjustable)
- Built-in transceiver antenna, with a reading distance of 30 cm and a writing distance of 20 cm
- USB-powered, no external power supply required
- Supports USB 2.0 interface.
Product Parameters:
Type: UHF High-Frequency Card Issuer
Physical Parameters:

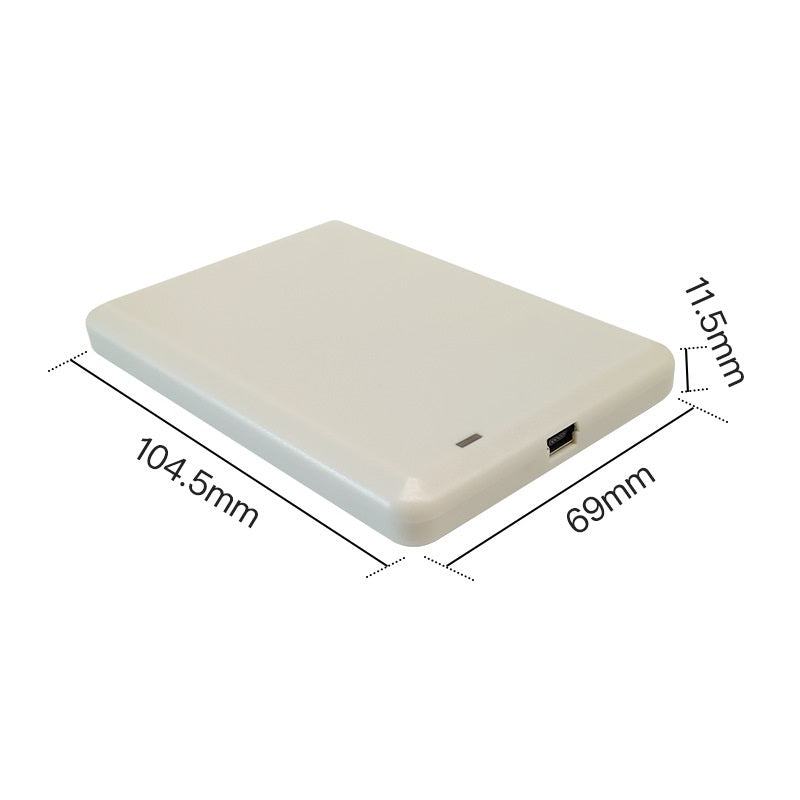

Dimensions: 1057011 mm
Weight: 0.2 Kg (including packaging)
Material: PVC coated
Color: Gray-white
Environmental Parameters:
Operating Temperature: -20 to +60℃
Operating Humidity: -25% to 85%
Performance Parameters:
- Antenna: Built-in linear polarized PCB antenna
- Output Power: Maximum 27dBm
- Reading Distance: 0-30 cm (dependent on the card and reading environment)
- Writing Distance: 0-20 cm (dependent on the card and reading environment)
- Card Reading Speed: 100 reads per second
- Card Type: ISO18000-6C
- Built-in Antenna: Yes
- Built-in LED: Red-green dual-color LED
- Built-in Speaker: Buzzer
- Power Supply: USB-powered
- Current: Less than 200mA (5V input)/1W
- Communication: Supports USB 2.0 interface.
Note: The parameters and functionality of this reader may vary based on different standards and environments in different countries or regions, and are subject to change without notice.
